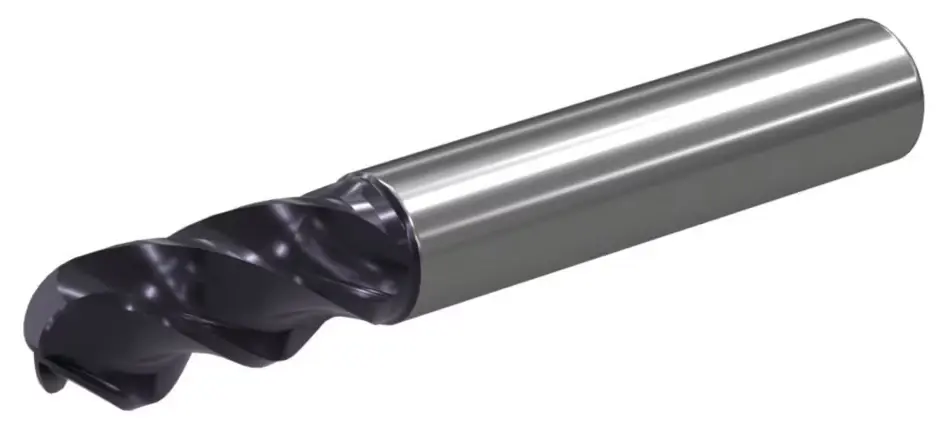

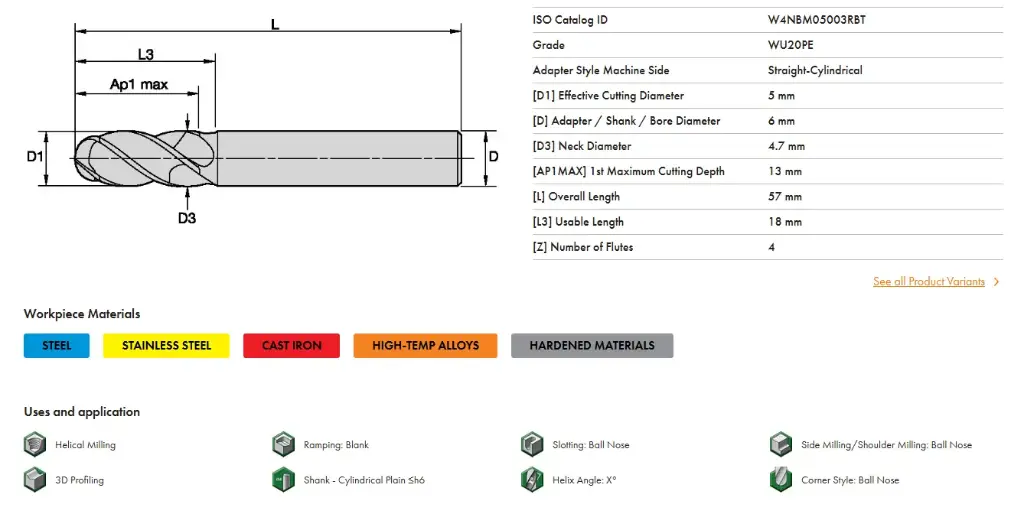

END MILL W4NB 5x6x13x57 BN

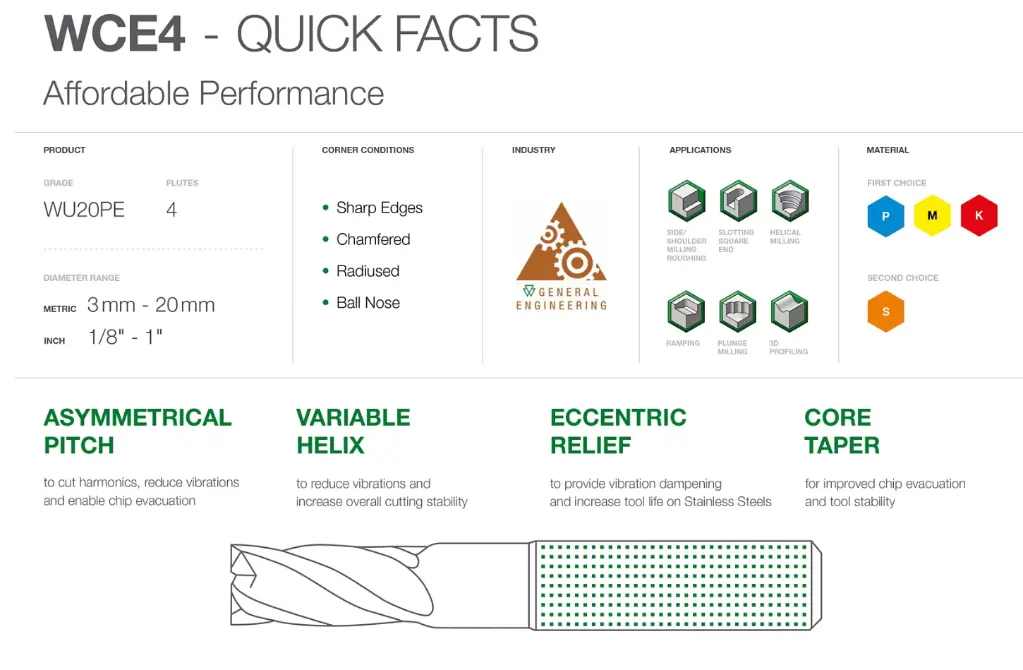

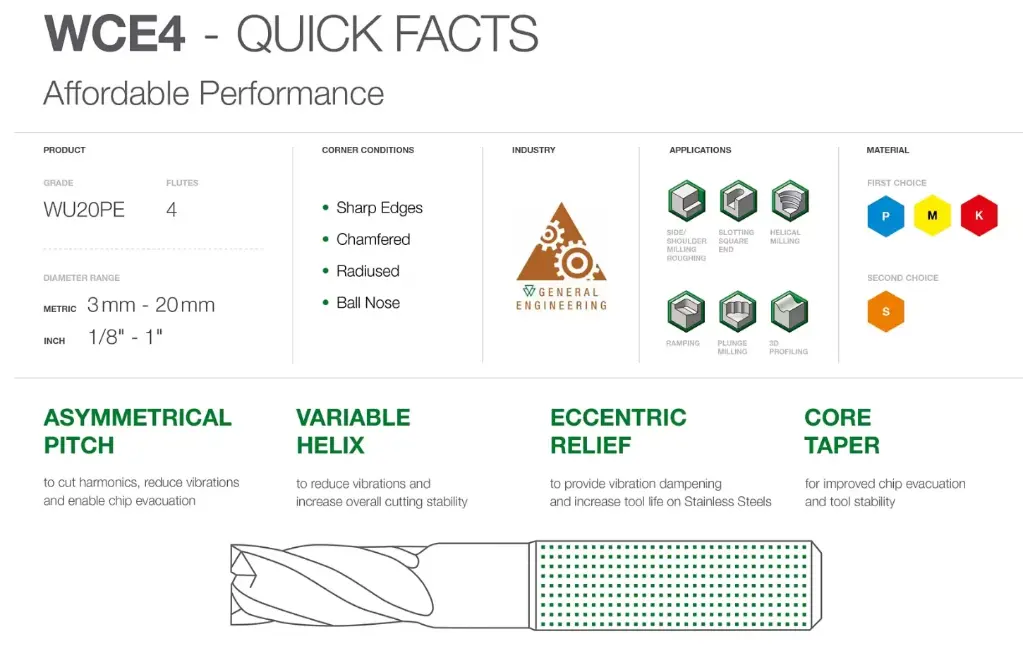

  • WU20PE grade
  • Variable helix to reduce vibrations and increase overall stability
  • Asymmetrical pitch to cut harmonics and reduce vibrations
  • Eccentric relief to provide vibration dampening and increase tool life on steel, stainless steel and cast iron
  • Core taper to increase tool stability and chip evacuation

Helical Milling Helical Milling

Ramp Down Ramp Down

Slot Milling Slotting: Ball Nose

Shoulder Milling Side Milling / Shoulder Milling: Ball Nose

3D Profile Milling 3D Profiling/Contour Milling

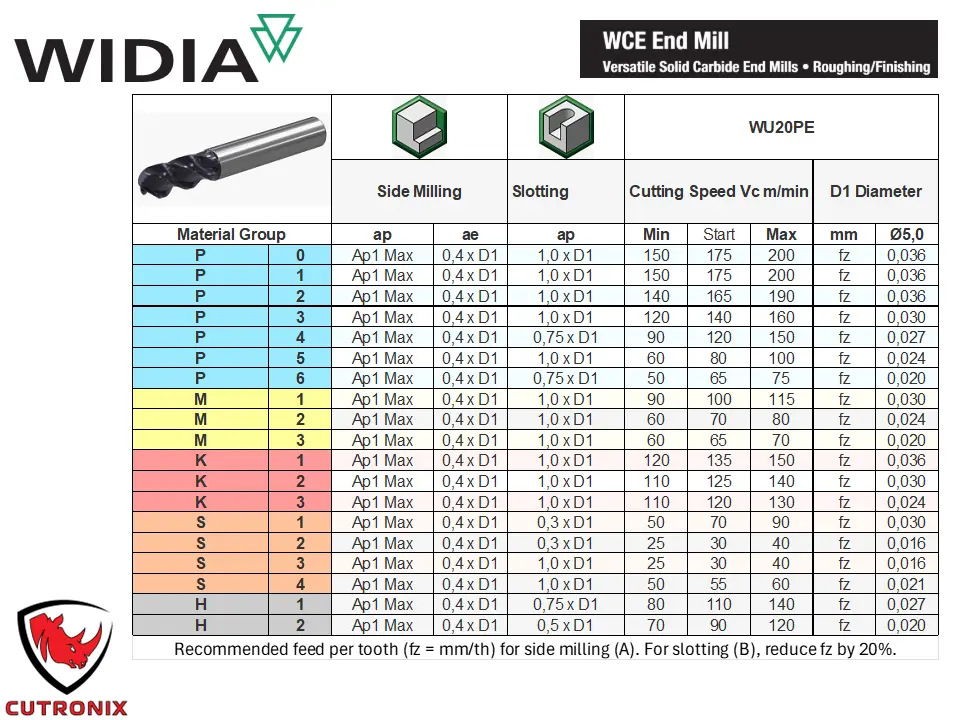

Cutting Conditions


Bulk Quantity Discount
5+ 5%
10+ 10%

 on Individual items or a combination of items for the quantities mentioned above

W4NB BALLNOSE ENDMILL
$ 27.79 $ 27.79 Tax Excluded
​
