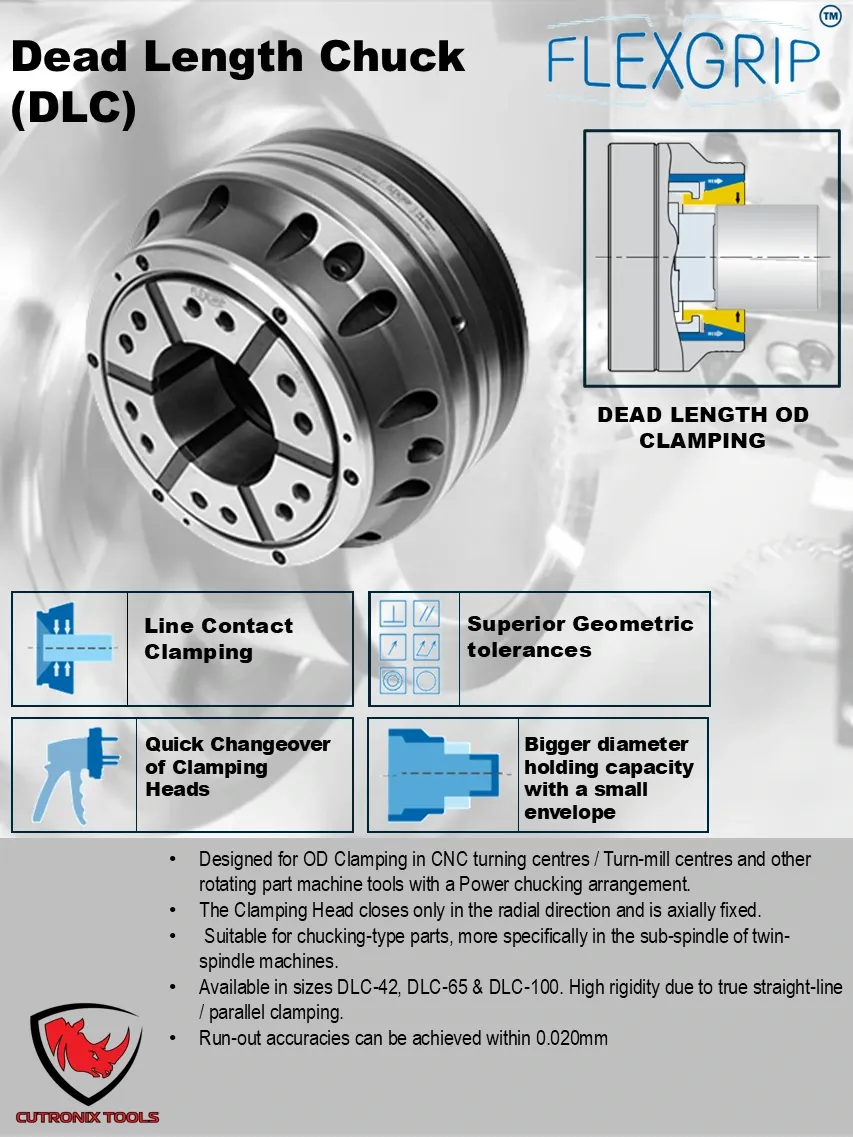

FLEXGRIP Dead Length Chuck (DLC-100) — high-precision dead-length collet chuck for OD clamping on CNC turning and turn-mill centres, with zero axial movement for length-critical and sub-spindle work. Runout within 0.020 mm, supplied Australia-wide by Cutronix.
- Line-contact clamping for secure, concentric grip
- Superior geometric tolerances — runout accuracies achievable within 0.020 mm
- Quick changeover of clamping heads
- Bigger holding capacity within a small/compact envelope
- Hardened steel segments for clamping-head durability and long tool life
- High-rigidity design through true straight-line / parallel clamping
- Designed for OD clamping in CNC turning centres, turn-mill centres and other rotating-part machines with power-chucking arrangements

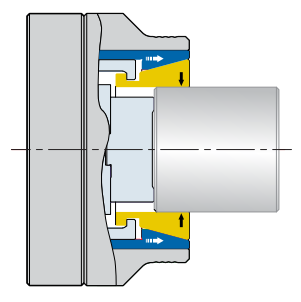

- Clamping head closes in the radial direction only — axially fixed (true dead-length)
- Best suited to chucking-type parts, especially in the sub-spindle of twin-spindle machines

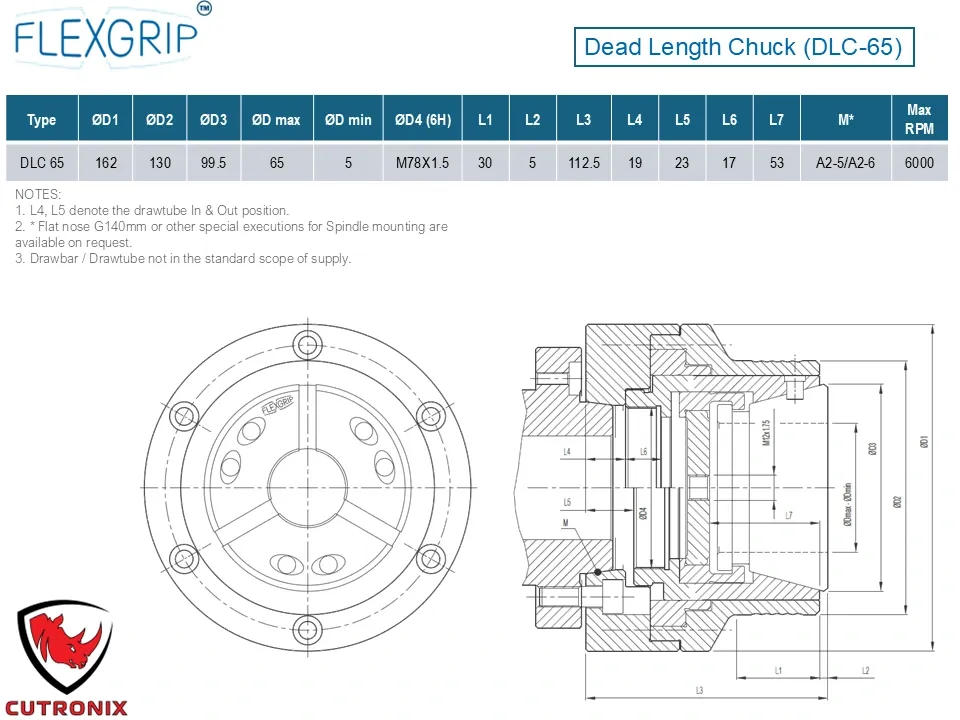

- Available across the range in DLC-42, DLC-65 and DLC-100 sizes
