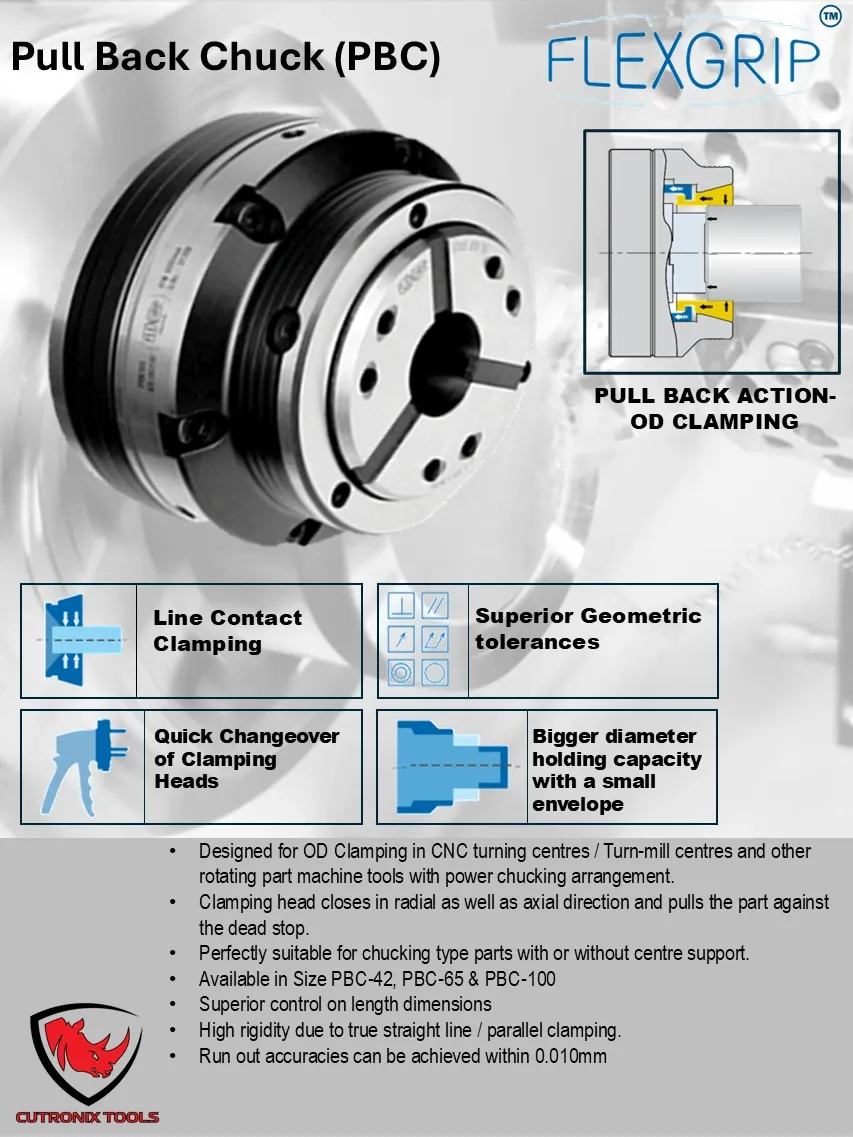

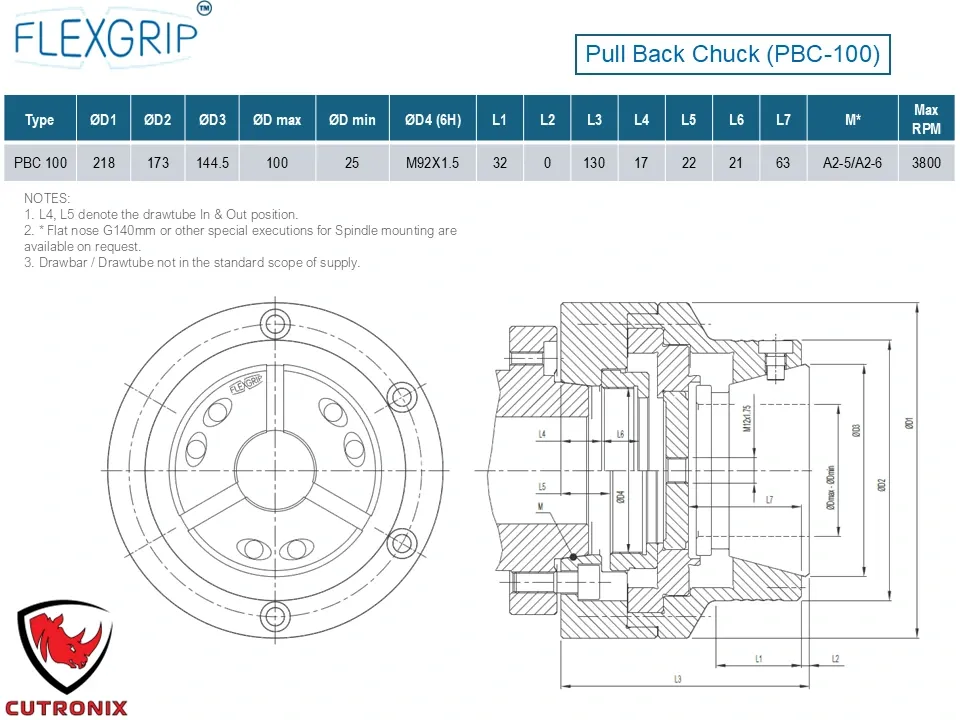

FLEXGRIP Pull Back Chuck (PBC-100) — high-precision pull-back collet chuck for OD clamping on CNC turning and turn-mill centres, drawing the part against a dead stop for superior control of length dimensions. Runout within 0.010 mm, supplied Australia-wide by Cutronix.
- Line-contact clamping for concentric, secure grip
- Superior geometric tolerances — runout within 0.010 mm
- Quick changeover of clamping heads
- Bigger holding capacity within a compact envelope
- High rigidity through true straight-line / parallel clamping
- Superior control over length dimensions
- Designed for OD clamping in CNC turning centres, turn-mill centres and other rotating-part machines with power-chucking arrangements
- Clamping head closes radially and axially, pulling the part against the dead stop
- Suitable for chucking-type parts, with or without centre support
- Available in PBC-42, PBC-65,PBC-100 & PBC-160
